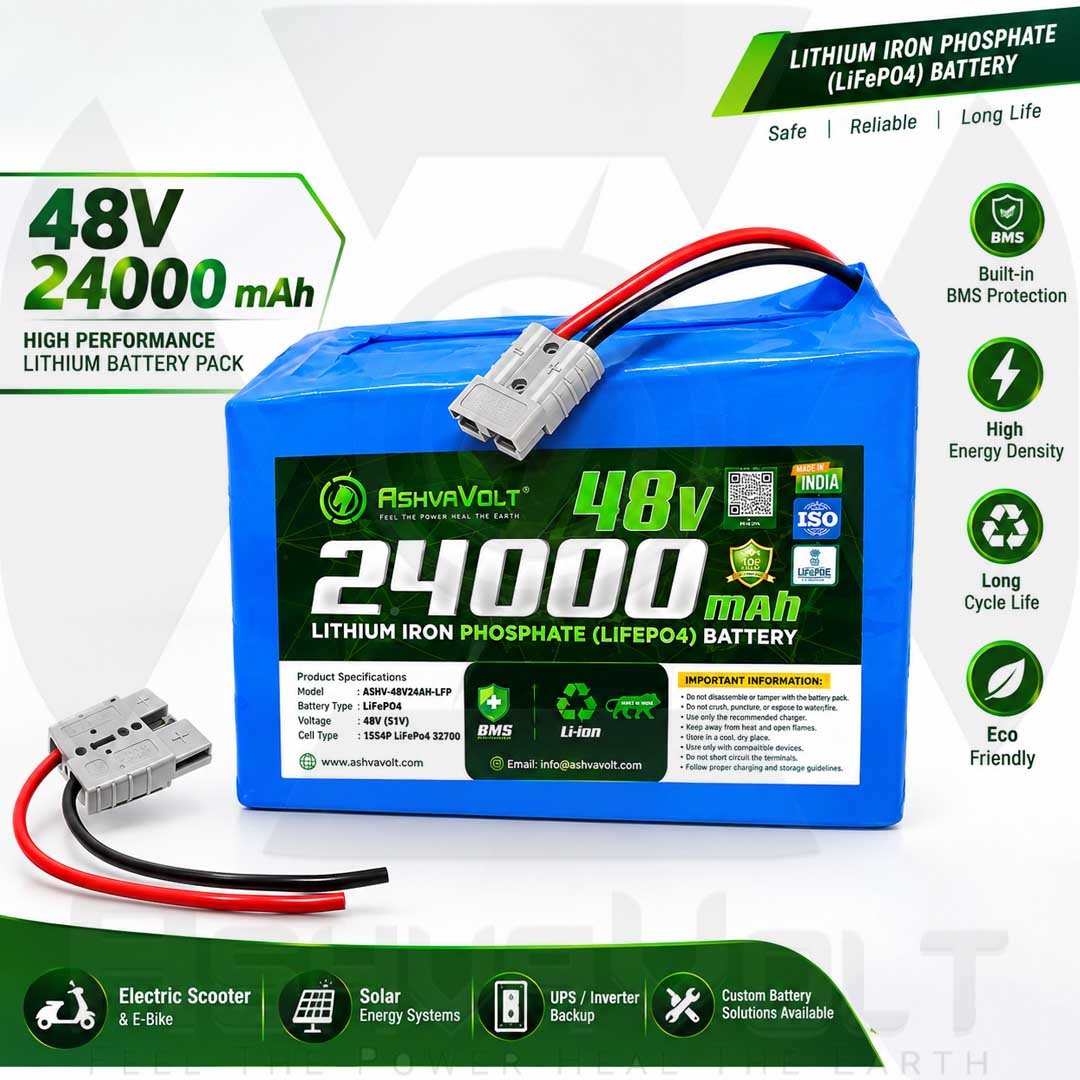

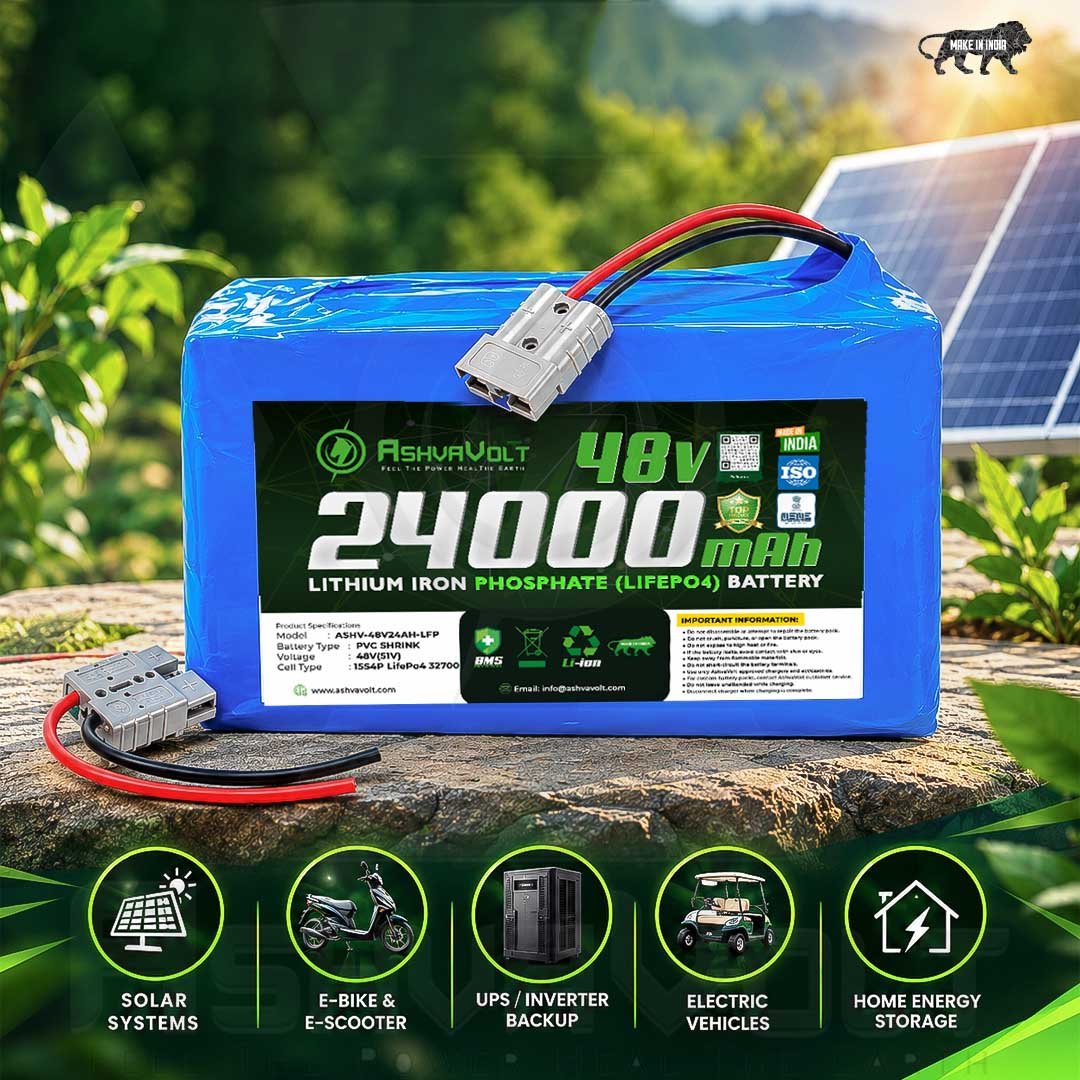

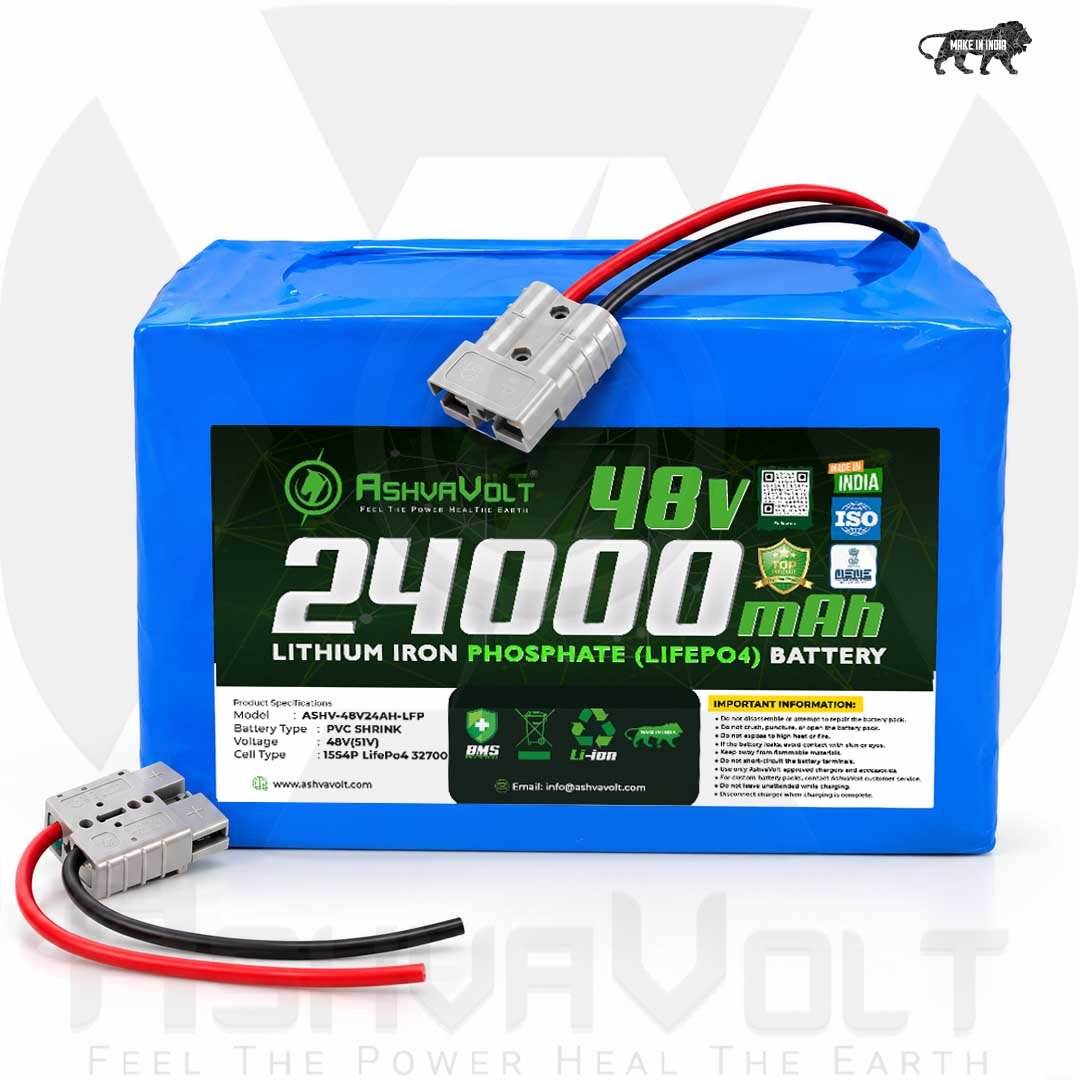

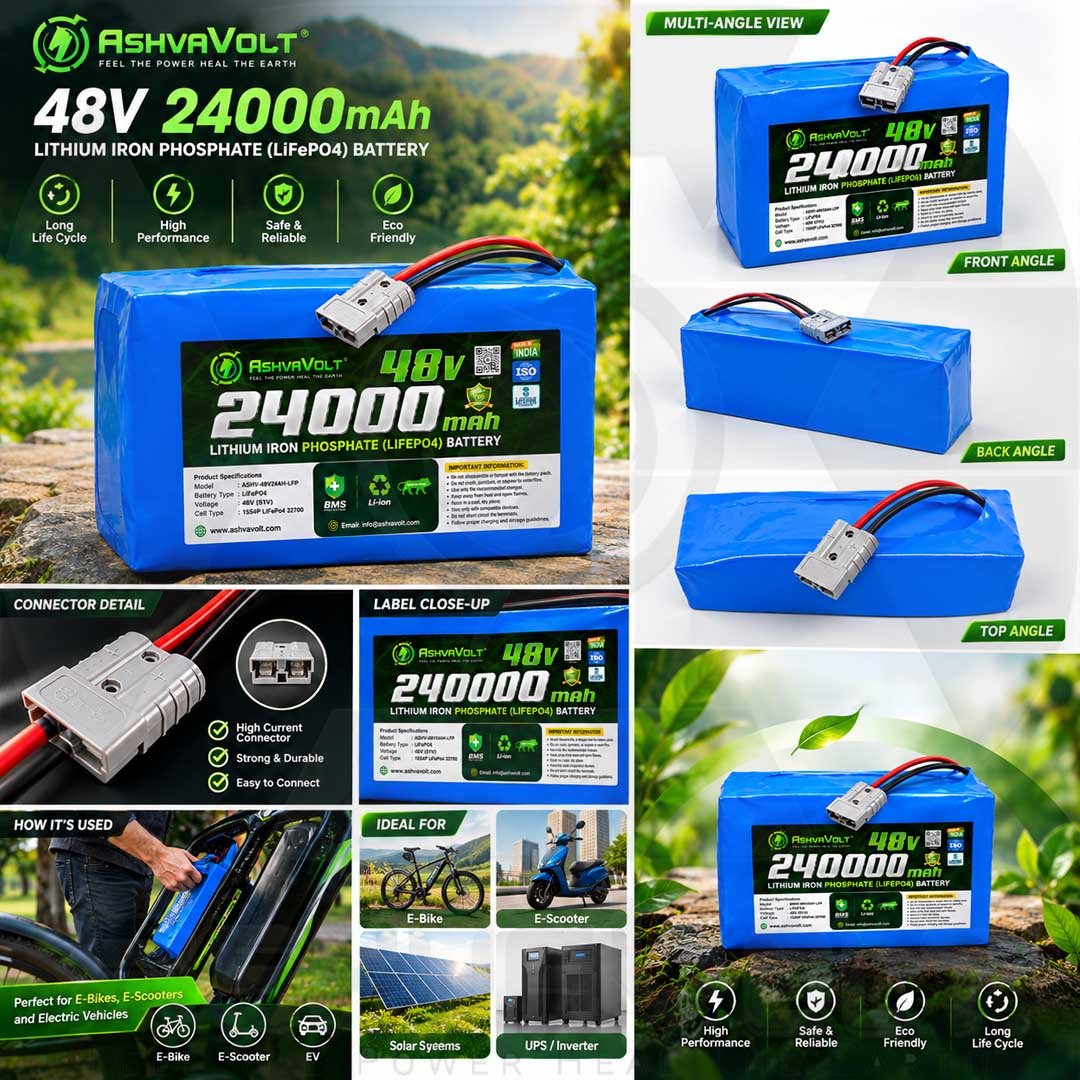

AshvaVolt® 48V 24Ah 15S Lithium Iron Phosphate (LiFePO4) Battery Pack with BMS Protection For Solar Inverter, E-Bike, EV, Toto Battery | 48v 24000mAh LifePo4 Battery

Specifications

Nominal Capacity: 24000 mAh
Nominal Voltage: 48V (15S)
Charging Voltage: 53V- 54V
Charge Connector : 3pin Connector
Discharge Port : SB50 Female Connector
Protection: Inbuilt BMS (Overcharge / Over-discharge / Short circuit)

SKU: ASHV-48V24AH-LFP

AshvaVolt Discount for New Customers

Hurry and get discounts on all Ashvavolt products up to 5%

Use code VOLT05

VOLT05

₹19,587

9 in stock

Compare

Add to wishlist

23 People watching this product now!

Xpressbees

Xpressbees courier will deliver to the specified address

5-7 Days ( Weekdays)

Free

Delhivery

Delhivery courier will deliver to the specified address

5-7 Days ( Weekdays)

Free

For fast delivery

Contact us via mail, WhatsApp, or call

1-2 Days

Chargeable

Charges may vary depending on the product and its weight

Free 7-Day returns

Payment Methods:

Description

Technical Specifications

Specification	Details
Battery Chemistry	LiFePO4 / LFP
Nominal Voltage	48V
True Capacity	24Ah
Energy Capacity	1152Wh
Configuration	15S4P
Total Cells	60 Cells
BMS	15S 40A LFP BMS
BMS Discharge Current	40A
BMS Charge Current	20A
Thermal Sensor Protection	Yes
Recommended Maximum Motor Power	Up to 1500W
Approx. Weight	9 kg
Battery Dimensions	27 × 15 × 14 cm ± 1 cm approx.
Custom Dimensions	Available
Full Charge Voltage	50.4V–51V
Discharge Cut-off Voltage	42V–45V
Standard Charging Current	6A
Maximum Charging Current	20A
Maximum Continuous Discharge	40A
Charging Method	CC/CV
Charging Temperature	0°C to 45°C
Discharge Temperature	-20°C to 45°C
Storage Temperature	20°C to 45°C
Cycle Life	2000+ cycles at 80% DOD*

*Cycle life depends on operating conditions, charging/discharging practices, temperature and depth of discharge. Lower depth of discharge can help extend battery life.

BMS Protection

The integrated 15S 40A LFP BMS helps monitor and protect the battery during charging and operation.

Protection features include:

Overcharge Protection – Helps prevent excessive charging voltage.
Deep Discharge Protection – Helps protect cells from excessive discharge.
Short-Circuit Protection – Helps disconnect the battery during short-circuit conditions.
Thermal Protection – Temperature monitoring through a thermal sensor.
Thermal Runaway Protection – Designed to provide an additional layer of protection against abnormal temperature conditions.

Charging & Operating Parameters

The battery uses CC/CV charging. A standard charging current of 6A is recommended, while the maximum specified charging current is 20A.

The specified charging temperature range is 0°C to 45°C, while the discharge operating range is -20°C to 45°C.

Applications

The AshvaVolt® 48V 24Ah LFP battery can be used for:

Electric Bikes
Electric Scooters
Electric Vehicles
EV Conversion Projects
48V Custom EV Applications
1500W-Class Motor Applications
Custom Battery Projects
Other compatible DC power applications

Custom Battery Options

AshvaVolt® offers customized battery configurations according to application requirements. Battery dimensions can be customized based on available installation space, subject to cell configuration, BMS requirements and technical feasibility.

Note: Actual range and runtime depend on motor power, vehicle weight, riding conditions, speed, terrain, load, temperature and other operating factors.

48 V

24Ah

AshvaVolt® 24V 12Ah Lithium Phosphate LFP Battery Pack Solar Inverter, E-Bike, E-Scooty, Toto Battery with BMS protectiona

Battery warranty –

2 year warranty is available with the battery.

SAFE OPERATION:

It is designed to the highest automotive standards.
A Class BMS ensures 24/7 battery performance and safety.
Protect against short circuit, cell over voltage, cell under
Voltage, charge over current and discharge under current.
BMS monitors all 15 cell series voltage for passive balancing

Its Higher in power, higher in Mileage than normal Lead acid Battery. Battery weight is also very light than lead acid battery. This battery is protected with over charge protection. Low discharge protection. This battery weight is very low than your normal lead acid battery. This Battery provides a lifespan of nearly 3 years where a normal lead acid battery sustain for only 1 year’s of life.

AshvaVolt 48V 24Ah portable battery pack is a compact, safe and economical Li-Ion battery pack. This standalone battery pack is designed for Electric Vehicle (Bike and Scooty) with high power NMC Li-Ion Cells.

No additional equipment is required for safe operation of battery pack.

In extreme operating conditions, BMS disconnect battery from the system. This ensure safe operation and protect the battery pack against short circuits, over-charge, over-discharge, over current and over temperature.

This Li-Ion battery pack is maintenance free, and has a longer run time with a shorter recovery time than equivalent lead acid battery packs. It weighs 70% less and takes 60% less space than equivalent lead acid battery packs, providing increased range product compatibility.

Use only lithium Ion charger for this battery. Do not use Lead acid Battery Charger.

SAFETY AND PRECAUTION

When charging the battery, use dedicated chargers and follow the specified conditions.
Do not connect battery directly to an electric outlet or high current application.
Do not heat or throw battery into a fire.
Do not use, leave battery close to fire or inside of a car where temperature may be above 60℃.
Also do not charge / discharge in such conditions.
Do not immerse, throw, and wet battery in water/ seawater.
Do not put batteries in your pockets or a bag together with metal objects such as necklaces,
Hairpins, coins, or screws. Do not store batteries with such objects.
Do not short circuit the (+) and (-) terminals with other metals.
Do not place battery in a device with the (+) and (-) in the wrong way around.
Do not pierce battery with a sharp object such as a needle.
Do not hit with a hammer, step on or throw or drop to cause strong shock.
Do not disassemble or modify the battery.
Do not use a battery with serious scar or deformation.
