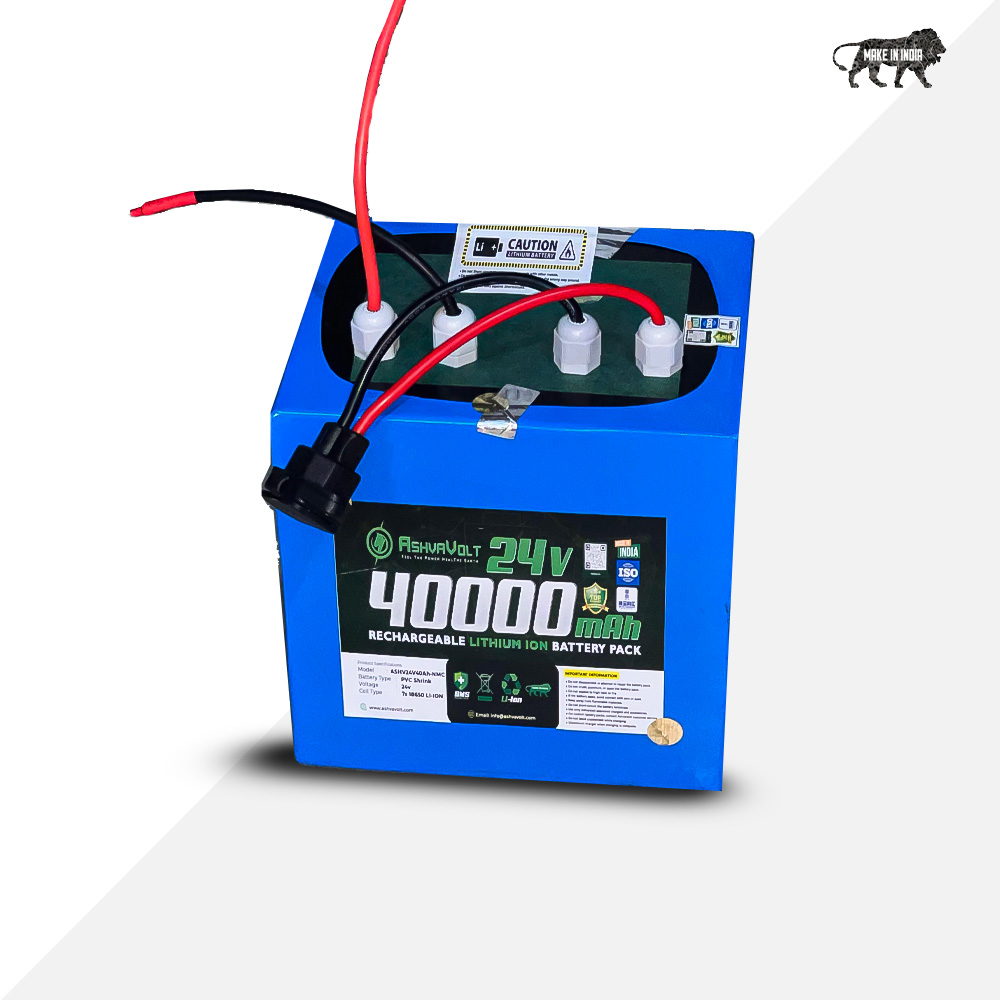

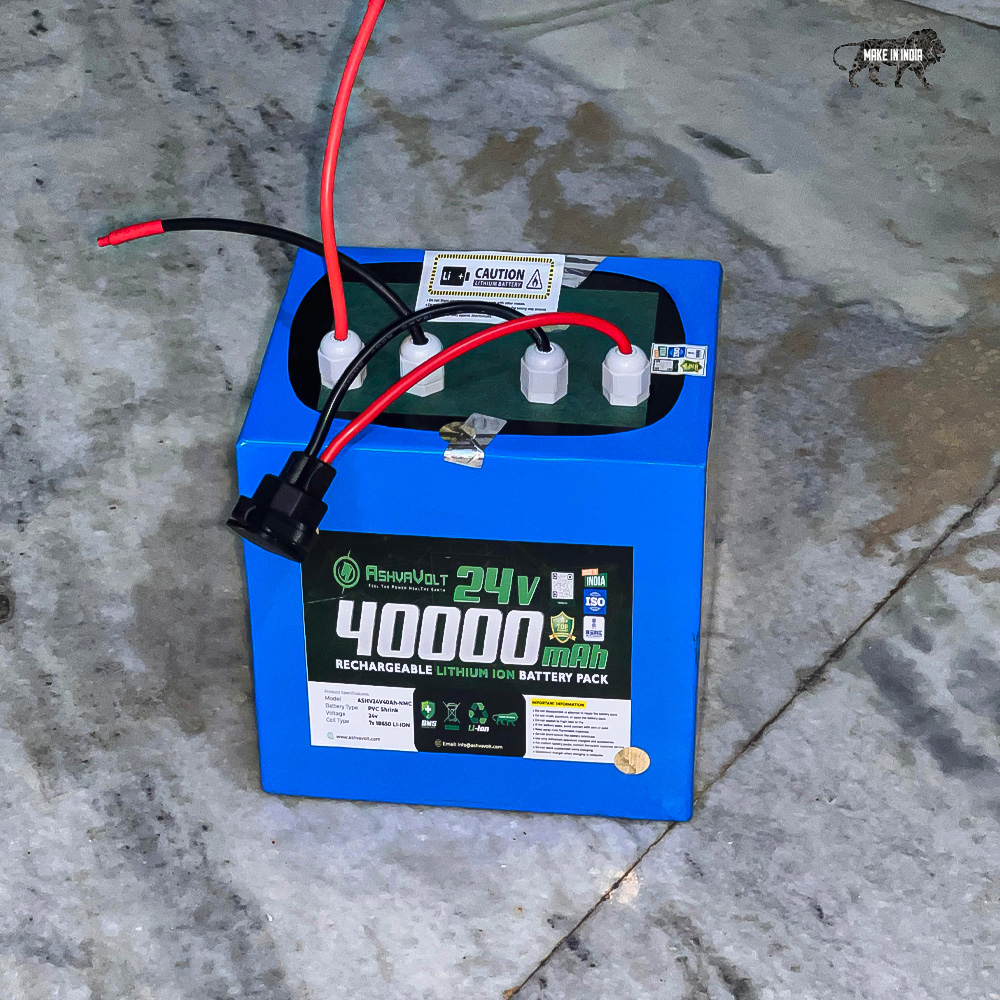

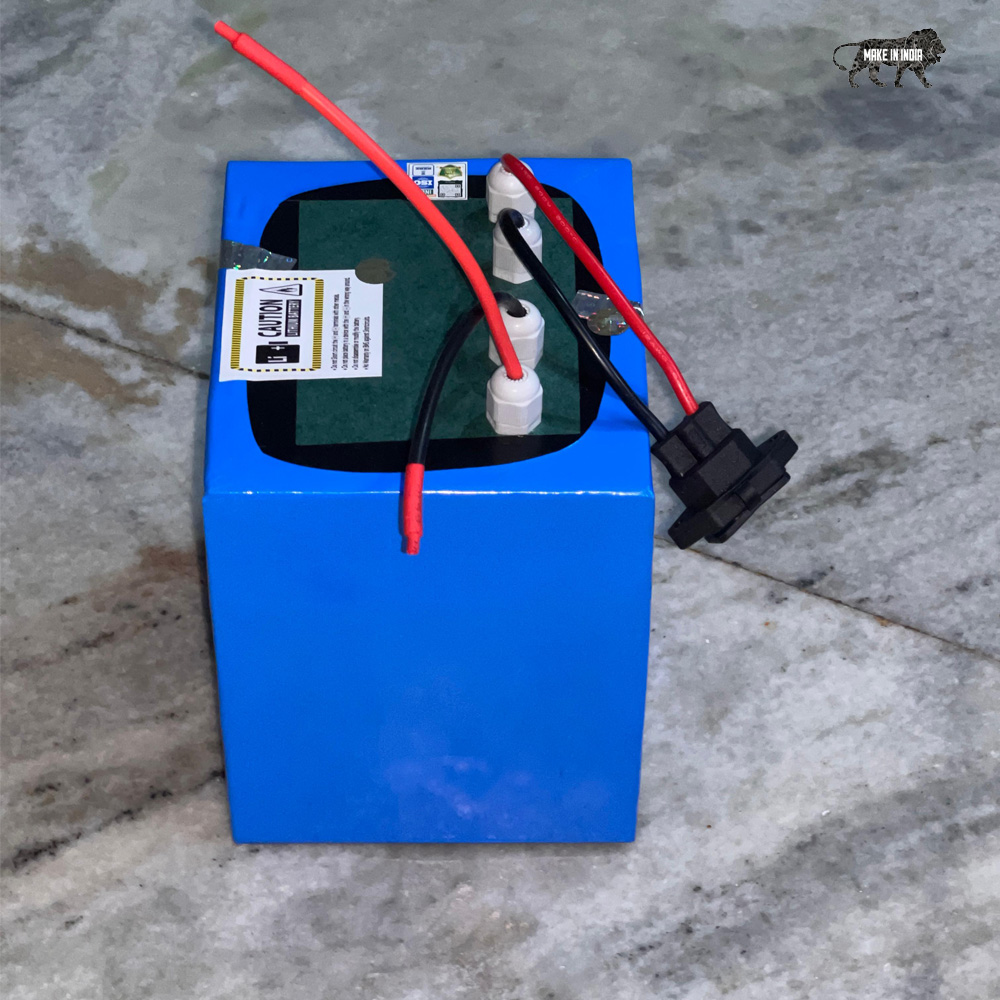

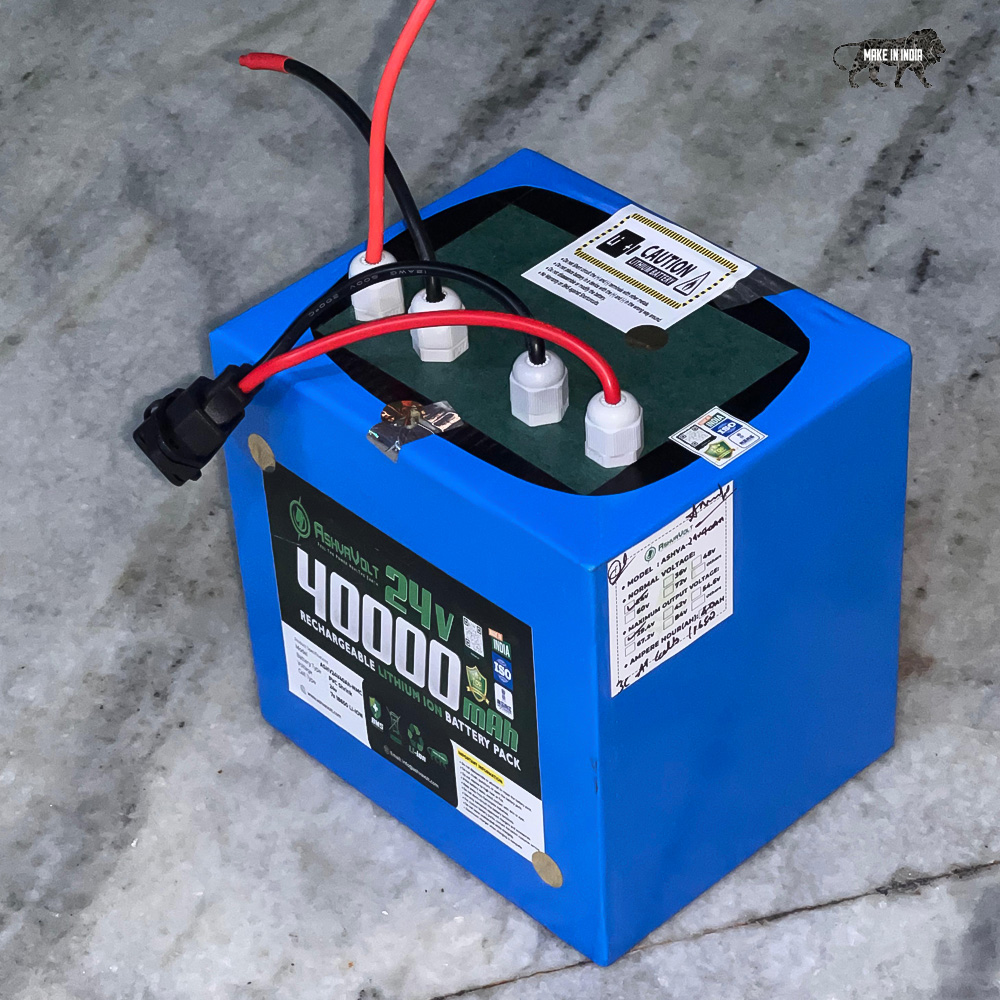

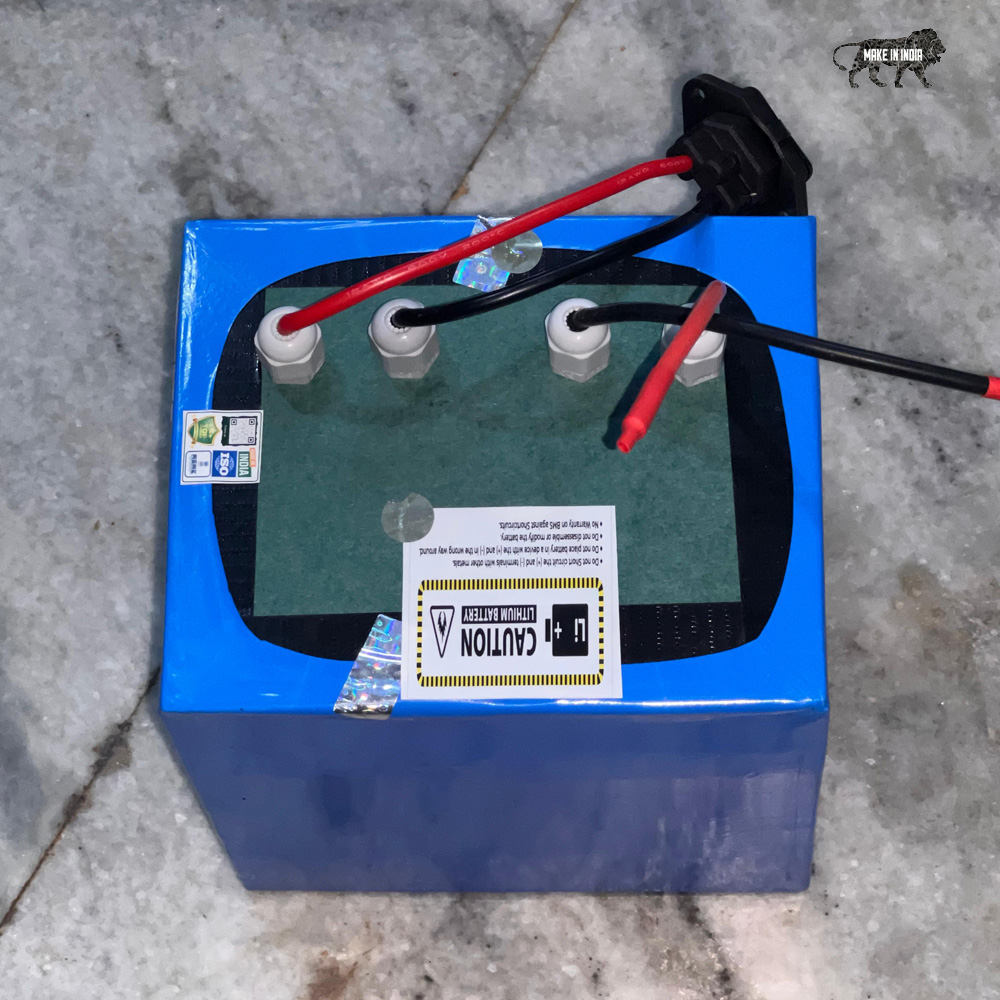

AshvaVolt® 24V 40Ah Lithium-Ion Rechargeable Battery Pack For Electric Cycle, Solar & Others EV | 24 volt 40000mAh

Name: AshvaVolt® 24V 40Ah Lithium-Ion Rechargeable Battery Pack For Electric Cycle, Solar &amp; Others EV | 24 volt 40000mAh
SKU: ASHV-24V40AH-NMC
Price: 14340 INR
Availability: InStock

SKU: ASHV-24V40AH-NMC

AshvaVolt Discount for New Customers

Hurry and get discounts on all Ashvavolt products up to 5%

Use code VOLT05

VOLT05

₹16,921

18 in stock

Compare

Add to wishlist

18 People watching this product now!

Xpressbees

Xpressbees courier will deliver to the specified address

3-5 Days

Free

Delhivery

Delhivery courier will deliver to the specified address

3-5 Days

Free

For fast delivery

Contact us via mail, WhatsApp, or call

1-2 Days

Chargeable

Charges may vary depending on the product and its weight

Free 7-Day returns

Payment Methods:

Description

GENERAL SPECIFICATION

Model ASHVA-2440
Dimensions (LxWxH): 210mmX180X120mm (Dimensions can be Customized)
Weights: 6kg Approx
Nominal Packing HS Sleeve or FRP Box
Cell Type 3.7V NMC Cylindrical
Cell Model 18650

ELECTRICAL SPECIFICATION

Nominal Voltage: 25.9V
Nominal Capacity: 40Ah
Battery Energy: 1036Wh
Resistance 30mΩ at: 50%SOC
Efficiency: 99%
Self-Discharge: <5% Per Month

CHARGING PARAMETERS

Recommended Charge Current: 1A – 6A
Maximum Charge Current: 10A
Recommended Charge Voltage: 28.4V – 29.2V
BMS Charge Cut-Off Voltage: 29.75V±0.21V
Over Charge Detection Delay: 400 – 800mSec
Over Charge Release Voltage: 28.35V±0.35V

DISCHARGING PARAMETERS

Recommended Discharge Current: 1A – 20A
Maximum Continuous Discharge Current: 20A
Peak Discharge Current: 40A for 2 Sec
Recommended Discharge Voltage: 20.5V – 21.0 V
BMS Discharge Cut-Off Voltage: 17.5V±0.21V
Over Discharge Detection Delay: 10 – 300mSec
Over Discharge Release Voltage: 19.60V±0.35V

Note: Charger is not included6

24 V

40Ah

AshvaVolt® Lithium-Ion Rechargeable Battery Pack For Electric Vehicle, Solar & Others EV 36Ah Battery for E Bike

Battery warranty –

1 year warranty is available with the battery.

Free home Delivery
Battery with Warranty
Original Cells With BMS protection
Small & Compact Size Battery Pack
1200 Cycles/3Years Battery Life

SAFETY AND PRECAUTION

 When charging the battery, use dedicated chargers and follow the specified conditions.
 Do not connect battery directly to an electric outlet or high current application.
 Do not heat or throw battery into a fire.
 Do not use, leave battery close to fire or inside of a car where temperature may be above 60℃.
Also do not charge / discharge in such conditions.
 Do not immerse, throw, and wet battery in water/ seawater.
 Do not put batteries in your pockets or a bag together with metal objects such as necklaces,
Hairpins, coins, or screws. Do not store batteries with such objects.
 Do not short circuit the (+) and (-) terminals with other metals.
 Do not place battery in a device with the (+) and (-) in the wrong way around.
 Do not pierce battery with a sharp object such as a needle.
 Do not hit with a hammer, step on or throw or drop to cause strong shock.
 Do not disassemble or modify the battery.
 Do not use a battery with serious scar or deformation

Its Higher in power, higher in Mileage than normal Lead acid Battery. Battery weight is also very light than lead acid battery. This battery is protected with over charge protection. Low discharge protection. This battery weight is very low than your normal lead acid battery. This Battery provides a lifespan of nearly 3 years where a normal lead acid battery sustain for only 1 year’s of life.

Use only lithium Ion charger for this battery. Do not use Lead acid Battery Charger.
